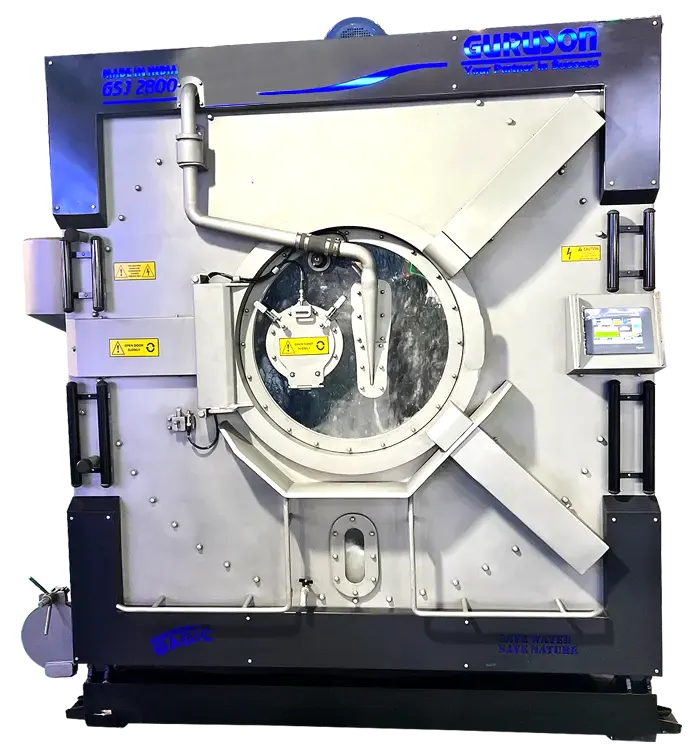

GSJ Magic Series
Washing Dyeing Machine
The eco system of our planet is facing a critical problem due to our misuse of natural resources. The pollution level of our environment has reached at saturation point. Now the world, study is going for a solution so that our next generation can survive on this earth. Our team at Guruson is also engaged in Washing Machine is so desigend to consume very less water, dyes and chemicals (with low ratio technology).
Features :
- Automatic PH control system.
- Auto forword tilting system for easy unloading.
- SCADA (System Controls and Data Acquisition) and Network applications.
- Auto Chemical dosing tank and pump.
Features :
- Water Spray through heavy duty pump.
- Gravitational Shower spray through beaters.
- Very low ratio 1:3 – 1:4.
- Water Filter to remove dust or unwanted contents from water which provides better effects on fabrics.
- Least Gap between inner and outer drum (25mm).
- Indirect heating through coils.
- P.L.C. Controlled with touch screen.
- Operating temperature up to 99 degree Celsius.
- Water level measurement with industrial water flow meter.
- Dual water drain valves.
- Auto door pneumatic locking system.
Option
Powerspray (Optional)
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Automatic Liquid Detergent Dosing System
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Smarteye
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Technical Specification For GSJ Magic Series Washing/Dyeing Machine
| Specification | MAGIC 230 | MAGIC 340 | MAGIC 700 | MAGIC 1300 | MAGIC 2100 | MAGIC 2800 | MAGIC 3800 | MAGIC 5100 |
|---|---|---|---|---|---|---|---|---|
| Capacity | 15 Kg | 30 Kg | 60 Kg | 120 Kg | 180 Kg | 280 Kg | 380 Kg | 500 Kg |
| INNER DRUM | ||||||||
| Diameter (mm) | 850 | 850 | 1220 | 1350 | 1500 | 1750 | 1800 | 1850 |
| Depth (mm) | 400 | 600 | 600 | 915 | 1200 | 1200 | 1500 | 1900 |
| Volume (Ltrs.) | 227 | 340 | 701 | 1309 | 2120 | 2885 | 3815 | 5105 |
| ELECTRICALS | ||||||||
| Drive Motor (KW) | 1.12 | 1.5 | 2.25 | 5.62 | 7.5 | 15 | 18.75 | 22.5 |
| Pump Motor (KW) | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 2.25 | 2.25 | 2.25 |
| Tilting Motor (KW) | - | - | 0.75 | 1.5 | 1.5 | 1.5 | 2.25 | 2.25 |
| WATER | ||||||||
| Water Inlet (mm) | 50.8 | 50.8 | 50.8 | 50.8 | 50.8 | 50.8 | 75 | 75 |
| Drain Outlet (mm) | 80 × 2 Nos. | 80 × 2 Nos. | 80 × 2 Nos. | 100 × 2 Nos. | 150 × 2 Nos. | 150 × 2 Nos. | 200 × 2 Nos. | 200 × 2 Nos. |
| STEAM | ||||||||
| Indirect Heating Inlet (mm) | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 | 38 | 38 |
| OVERALL DIMENSIONS | ||||||||
| Width (mm) | 1050 | 1050 | 1500 | 1850 | 2010 | 2388 | 2450 | 2500 |
| Depth / Length (mm) | 1025 | 1200 | 1600 | 2440 | 2950 | 2850 | 2950 | 3450 |
| Height (mm) | 1600 | 1600 | 1800 | 1850 | 2130 | 2390 | 2550 | 2650 |
| Height Tilting (mm) | - | - | 2300 | 2350 | 2630 | 2890 | 3050 | 3150 |
Features :
- Automatic PH control system.
- Auto forword tilting system for easy unloading.
- SCADA (System Controls and Data Acquisition) and Network applications.
- Auto Chemical dosing tank and pump.
Features :
- Water Spray through heavy duty pump.
- Gravitational Shower spray through beaters.
- Very low ratio 1:3 – 1:4.
- Water Filter to remove dust or unwanted contents from water which provides better effects on fabrics.
- Least Gap between inner and outer drum (25mm).
- Indirect heating through coils.
- P.L.C. Controlled with touch screen.
- Operating temperature up to 99 degree Celsius.
- Water level measurement with industrial water flow meter.
- Dual water drain valves.
- Auto door pneumatic locking system.
Option
Powerspray (Optional)
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Automatic Liquid Detergent Dosing System
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Smarteye
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Technical Specification For GSJ Magic Series Washing/Dyeing Machine
| Specification | MAGIC 230 | MAGIC 340 | MAGIC 700 | MAGIC 1300 | MAGIC 2100 | MAGIC 2800 | MAGIC 3800 | MAGIC 5100 |
|---|---|---|---|---|---|---|---|---|
| Capacity | 15 Kg | 30 Kg | 60 Kg | 120 Kg | 180 Kg | 280 Kg | 380 Kg | 500 Kg |
| INNER DRUM | ||||||||
| Diameter (mm) | 850 | 850 | 1220 | 1350 | 1500 | 1750 | 1800 | 1850 |
| Depth (mm) | 400 | 600 | 600 | 915 | 1200 | 1200 | 1500 | 1900 |
| Volume (Ltrs.) | 227 | 340 | 701 | 1309 | 2120 | 2885 | 3815 | 5105 |
| ELECTRICALS | ||||||||
| Drive Motor (KW) | 1.12 | 1.5 | 2.25 | 5.62 | 7.5 | 15 | 18.75 | 22.5 |
| Pump Motor (KW) | 0.75 | 0.75 | 0.75 | 1.5 | 1.5 | 2.25 | 2.25 | 2.25 |
| Tilting Motor (KW) | - | - | 0.75 | 1.5 | 1.5 | 1.5 | 2.25 | 2.25 |
| WATER | ||||||||
| Water Inlet (mm) | 50.8 | 50.8 | 50.8 | 50.8 | 50.8 | 50.8 | 75 | 75 |
| Drain Outlet (mm) | 80 × 2 Nos. | 80 × 2 Nos. | 80 × 2 Nos. | 100 × 2 Nos. | 150 × 2 Nos. | 150 × 2 Nos. | 200 × 2 Nos. | 200 × 2 Nos. |
| STEAM | ||||||||
| Indirect Heating Inlet (mm) | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 | 25.4 | 38 | 38 |
| OVERALL DIMENSIONS | ||||||||
| Width (mm) | 1050 | 1050 | 1500 | 1850 | 2010 | 2388 | 2450 | 2500 |
| Depth / Length (mm) | 1025 | 1200 | 1600 | 2440 | 2950 | 2850 | 2950 | 3450 |
| Height (mm) | 1600 | 1600 | 1800 | 1850 | 2130 | 2390 | 2550 | 2650 |
| Height Tilting (mm) | - | - | 2300 | 2350 | 2630 | 2890 | 3050 | 3150 |
