Washer
Extractor

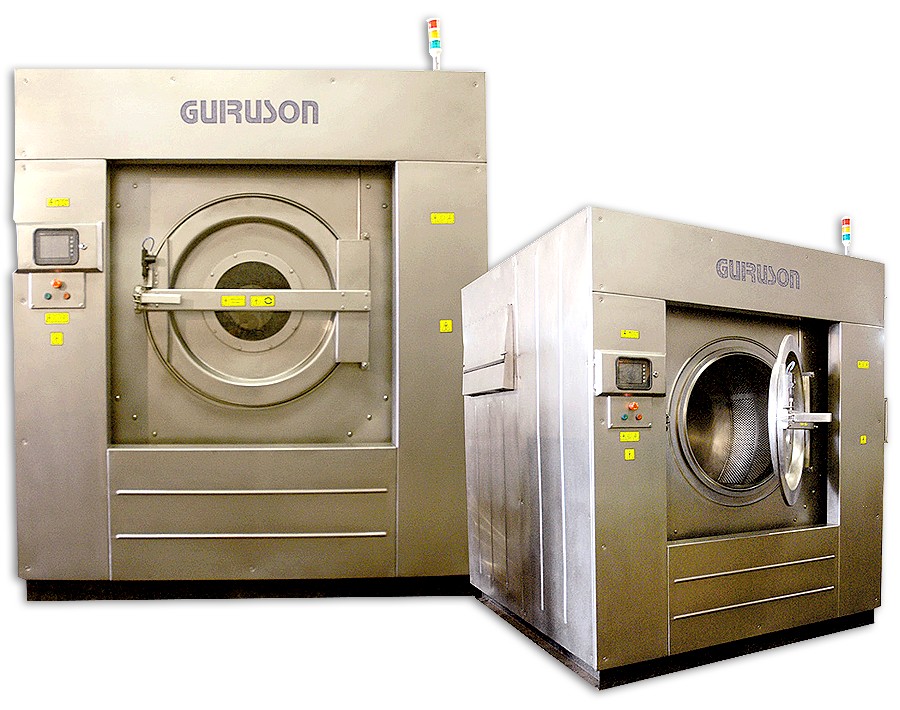

In fact, Washer Extractor is a very efficient combination of conventional washing machines and hydro extractor required by standard and high level shop floors. The installation of this machine checks operators negligency of killing time and keeping the washing area dry and clean. We can also save loading and unloading time required for both the conventional washing and hydro extractor machines. Washer extractor is provided with computer controlled system with desired software, which we can wash, rinse and get right spin extraction with in the stipulated time given.
GURUSON brand Washer Extractor is very successful machine designed for high speed extraction. Self unloading titled models are also available with us which reduces unloading time.
Chemical and Water Saver : The Chemical and water is controlled by the computer taking the measured quantity every time which results to check the wastage.
Salient
Features:
- Fabric speed controlled by gear
- Fabric plating controlled by gear and A.C. drive
- Gear center are fixed
- Main cylinder speed controlled with A.C. drive
- Main cylinder stopped with help of electric brake.
- 12 roller are pile and 12 roller are counter pile
- Rollers are dynamically balanced
- All roller shaft are induction hardened and grinding
- Main cylinder all bearing are doubled roller bearings
- Low power consumption
Powerspray (Optional)
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

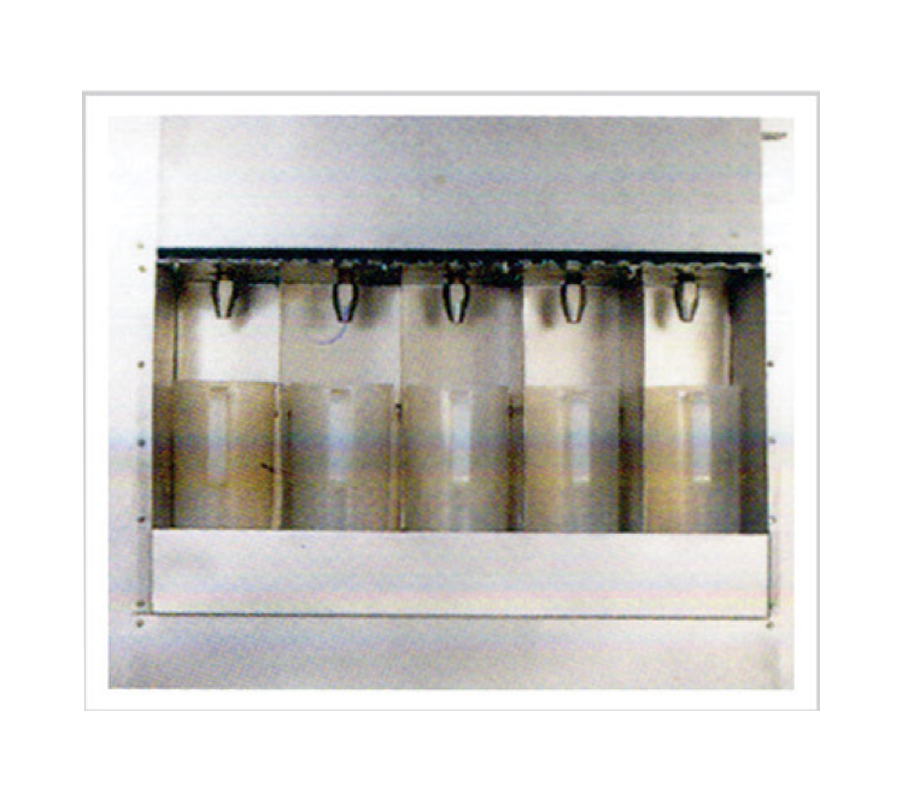

Automatic Liquid Detergent Dosing System
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Smarteye
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Technical Specification Of Washer Extractor
| Model | Capacity Per Charge | Basket Size | Volume | Drive Motor | Basket Rotation | Door Opening | Water Connection | Drain | Heating | Dimensions (W × D × H) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wash | Extract | Steam Connection | Electric | |||||||||
| G x S 30 G x E 30 |
30 Kg | Ø900 × 500 | 318 Ltrs. | 5 KW | 35–45 RPM | 800 RPM | Ø500 | Ø25 | 1″ BSP Ø75 |
GxS 30 Ø15 (0.5″ BSP) |
GxE 30 18 KW |
W-1350 D-1450 H-1725 |
| G x S 60 G x E 60 |
60 Kg | Ø1100 × 650 | 617 Ltrs. | 10 KW | 35–40 RPM | 720 RPM | Ø650 | Ø38 | 1.5″ BSP Ø75 |
GxS 60 Ø15 (1.5″ BSP) |
GxE 60 36 KW |
W-1600 D-1750 H-2025 |
| G x S 120 | 120 Kg | Ø1350 × 850 | 1216 Ltrs. | 18.5 KW | 30–35 RPM | 650 RPM | Ø800 | Ø50 | 2″ BSP Ø75 |
2 Nos. GxS 120 Ø25 (1″ BSP) |
— | W-1950 D-2050 H-2300 |
| G x S 120T Forward Tilt |
120 Kg | Ø1350 × 850 | 1216 Ltrs. | 18.5 KW Tilt Motor 1.5 KW |
30–35 RPM | 650 RPM | Ø800 | Ø50 | 2″ BSP Ø75 |
2 Nos. GxS 120T Ø25 (1″ BSP) |
— | W-1950 D-2050 H-2300 |
Washer
Extractor
In fact, Washer Extractor is a very efficient combination of conventional washing machines and hydro extractor required by standard and high level shop floors. The installation of this machine checks operators negligency of killing time and keeping the washing area dry and clean. We can also save loading and unloading time required for both the conventional washing and hydro extractor machines. Washer extractor is provided with computer controlled system with desired software, which we can wash, rinse and get right spin extraction with in the stipulated time given.
GURUSON brand Washer Extractor is very successful machine designed for high speed extraction. Self unloading titled models are also available with us which reduces unloading time.
Chemical and Water Saver : The Chemical and water is controlled by the computer taking the measured quantity every time which results to check the wastage.
Technical Specification Of Washer Extractor
| Model | Capacity Per Charge | Basket Size | Volume | Drive Motor | Basket Rotation | Door Opening | Water Connection | Drain | Heating | Dimensions (W × D × H) | ||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Wash | Extract | Steam Connection | Electric | |||||||||
| G x S 30 G x E 30 |
30 Kg | Ø900 × 500 | 318 Ltrs. | 5 KW | 35–45 RPM | 800 RPM | Ø500 | Ø25 | 1″ BSP Ø75 |
GxS 30 Ø15 (0.5″ BSP) |
GxE 30 18 KW |
W-1350 D-1450 H-1725 |
| G x S 60 G x E 60 |
60 Kg | Ø1100 × 650 | 617 Ltrs. | 10 KW | 35–40 RPM | 720 RPM | Ø650 | Ø38 | 1.5″ BSP Ø75 |
GxS 60 Ø15 (1.5″ BSP) |
GxE 60 36 KW |
W-1600 D-1750 H-2025 |
| G x S 120 | 120 Kg | Ø1350 × 850 | 1216 Ltrs. | 18.5 KW | 30–35 RPM | 650 RPM | Ø800 | Ø50 | 2″ BSP Ø75 |
2 Nos. GxS 120 Ø25 (1″ BSP) |
— | W-1950 D-2050 H-2300 |
| G x S 120T Forward Tilt |
120 Kg | Ø1350 × 850 | 1216 Ltrs. | 18.5 KW Tilt Motor 1.5 KW |
30–35 RPM | 650 RPM | Ø800 | Ø50 | 2″ BSP Ø75 |
2 Nos. GxS 120T Ø25 (1″ BSP) |
— | W-1950 D-2050 H-2300 |
