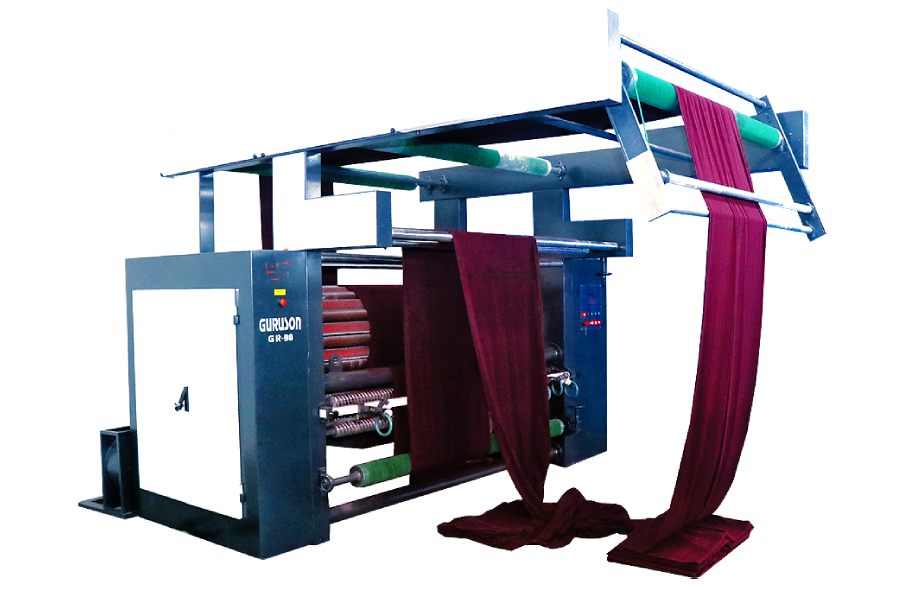

Rasing Machine
For Tube Knitted & Open Width Fabric
GURUSON with enriched industrial experience and knowledge are manufacturing a wide rage of textile raising machine. The machine is mainly used for raising, the surface of knitted fabrics, cotton fabrics and cotton polyester fleece For example pollar fleece, French Terry and most of the knitted fabric etc
Salient
Features:
- Fabric speed controlled by gear
- Fabric plating controlled by gear and A.C. drive
- Gear center are fixed
- Main cylinder speed controlled with A.C. drive
- Main cylinder stopped with help of electric brake.
- 12 roller are pile and 12 roller are counter pile
- Rollers are dynamically balanced
- All roller shaft are induction hardened and grinding
- Main cylinder all bearing are doubled roller bearings
- Low power consumption
Powerspray (Optional)
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Automatic Liquid Detergent Dosing System
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Smarteye
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Technical Specification for Raising Machine for Tube Knitting & Open Width Fabric
| Specification | GR-1500 | GR-2000 | GR-2200 |
|---|---|---|---|
| Roller Width | 1500 mm | 2000 mm | 2200 mm |
| No. of Raising Rollers | 24 | 24 | 24 |
| Diameter of Raising Rollers | 60 mm | 60 mm | 60 mm |
| Speed of Cylinder | 112 RPM/Min. | 112 RPM/Min. | 112 RPM/Min. |
| Power Consumption | 14 HP | 16.5 HP | 19 HP |
| Overall Dimensions (L × W × H) | 3770 × 3280 × 2700 mm | 3770 × 3280 × 2700 mm | 3770 × 3280 × 2700 mm |
