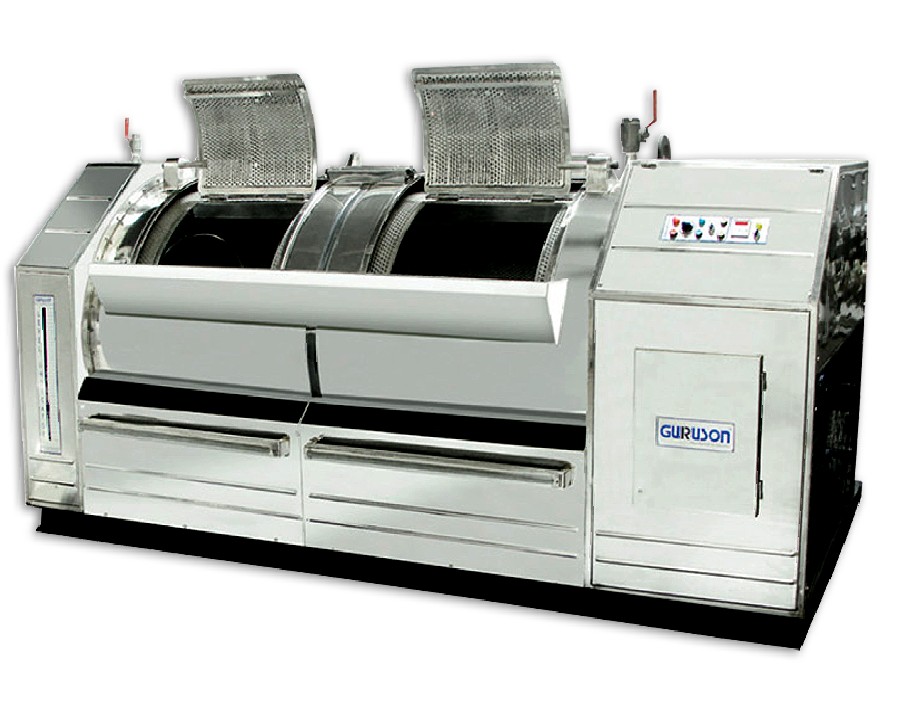

Washing & Dyeing
Machine (Side Loading)
Side loading washing machines is suitable for washing/milling of garments, cotton & woollen sweaters. Denim/enzyme wash, bath mats dyeing and dyeing of knitted garments.
Guruson side loading washing, machine has auto timed, auto reverse, auto digital temperature control, and auto stop features with gear box drive in all models and sizes. The body of the machine is fabricated out of stainless steel 304/316. Every joint is welded with argon welding. The inner drum basket is made of perforated S.S sheet having single smooth and fine joint. Our machine is designed for minimum possible liquor ratio
Side loading washing machines is suitable for washing/milling of garments, cotton & woollen sweaters. Denim/enzyme wash, bath mats dyeing and dyeing of knitted garments
Guruson side loading washing, machine has auto timed, auto reverse, auto digital temperature control, and auto stop features with gear box drive in all models and sizes. The body of the machine is fabricated out of stainless steel 304/316. Every joint is welded with argon welding. The inner drum basket is made of perforated S.S sheet having single smooth and fine joint. Our machine is designed for minimum possible liquor ratio
Powerspray (Optional)
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Automatic Liquid Detergent Dosing System
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Smarteye
Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.
Technical Specification of Washing & Dyeing Machine (Side Loading)
| Model | Capacity | Basket Size | Volume | Loading Door Opening | No. of Doors | Drive Motor | Water Connection | Water Consumption Per Dip (Ltrs.) | Drain | Heating | Overall Dimensions (W × D × H) | |||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Steam Connection | Electric | Diesel Fired | Thermic Fluid Connection | |||||||||||
| GWS-15 GWE-15 GWD-15 |
15 Kg | 610 × 710 | 200 Ltrs. | 520 × 300 | 1 | 0.37 KW | 1″ BSP | 85 | 3″ (75 mm) | 15 mm (0.5″ BSP) 8–10 Kg/Hr. |
6–12 KW | 1–1.5 Ltrs./Hr. | N.A. | 1790 × 815 × 1050 |
| GWS-30 GWE-30 GWD-30 |
30 Kg | 760 × 950 | 420 Ltrs. | 520 × 400 | 1 | 0.75 KW | 1.5″ BSP | 210 | 3″ (75 mm) | 15 mm (0.5″ BSP) 15–20 Kg/Hr. |
12–18 KW | 1.5–2 Ltrs./Hr. Temp Rise 2°C/Min. |
N.A. | 1860 × 970 × 1200 |
| GWS-60 GWE-60 GWT-60 GWD-60 |
60 Kg | 950 × 1320 | 950 Ltrs. | 665 × 450 | 1 | 2.25 KW | 2″ BSP | 450 | 4″ (100 mm) | 15 mm (0.5″ BSP) 30–40 Kg/Hr. |
24 KW | 3–4 Ltrs./Hr. Temp Rise 2°C/Min. |
1″ × 1″ 22000 KCAL/Hr. |
2515 × 1200 × 1350 |
| GWS-100 GWE-100 GWT-100 GWD-100 |
100 Kg | 1170 × 1350 | 1400 Ltrs. | 665 × 470 | 1 | 5.5 KW | 2″ BSP | 700 | 4″ (100 mm) | 15 mm (0.5″ BSP) 60–80 Kg/Hr. |
36 KW | 5–6 Ltrs./Hr. Temp Rise 2°C/Min. |
1″ × 1″ 43000 KCAL/Hr. |
2700 × 1470 × 1680 |
| GWS-200 GWT-200 GWD-200 |
200 Kg | 1220 × 2440 | 2850 Ltrs. | 665 × 470 | 2 | 10 KW | 2″ BSP × 2 | 1400 | 6″ (150 mm) | 20 mm × 2 (0.75″ BSP) 160–180 Kg/Hr. |
N.A. | 8–10 Ltrs./Hr. Temp Rise 2°C/Min. |
1.5″ × 1.5″ 95000 KCAL/Hr. |
4000 × 1475 × 1680 |
| GWS-300 GWT-300 |
300 Kg | 1220 × 3660 | 4275 Ltrs. | 665 × 470 | 3 | 15 KW | 2″ BSP × 3 | 2200 | 8.8″ (224 mm) | 20 mm × 3 (0.75″ BSP) 200–250 Kg/Hr. |
N.A. | N.A. | 2″ × 2″ 135000 KCAL/Hr. |
5400 × 1730 × 1750 |
| GWS-400 GWT-400 |
400 Kg | 1500 × 3660 | 6465 Ltrs. | 665 × 470 | 3 | 18.5 KW | 2″ BSP × 3 | 3250 | 8.8″ (224 mm) | 20 mm × 3 (0.75″ BSP) 300–350 Kg/Hr. |
N.A. | N.A. | 2″ × 2″ 190000 KCAL/Hr. |
5600 × 2010 × 2030 |
